FEC Source Professional Binocular Microscope
FEC Source Professional Binocular Microscope
Professional Biological Compound Microscope for Accurate FEC Testing

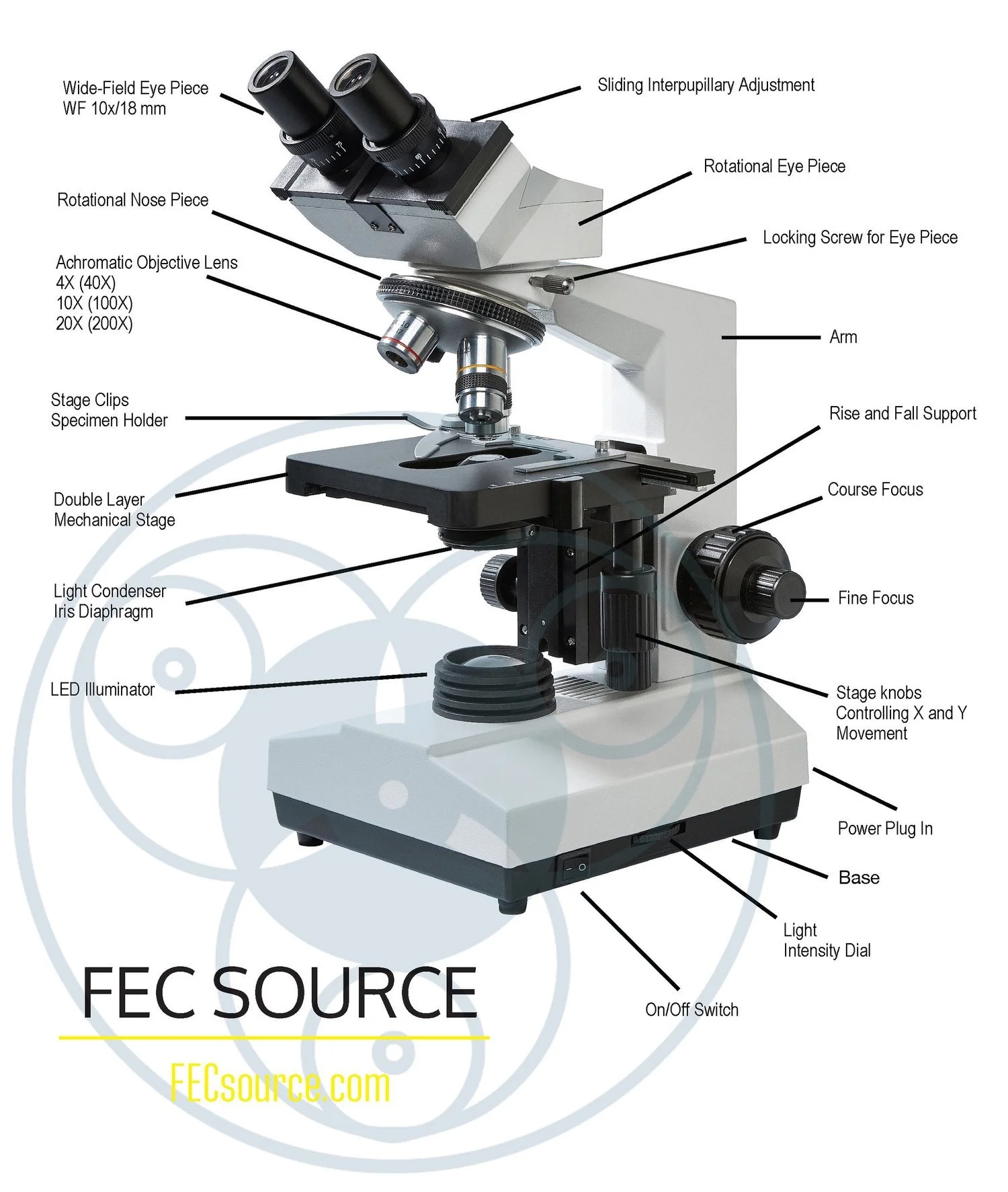

TO SEE AN ENLARGED DIAGRAM OF THIS MICROSCOPE SEE OUR PAGE “MICROSCOPES”.
All our products are come with satisfaction guarantee
Our advanced biological compound microscope is specifically designed to meet the highest standards in conducting Fecal Egg Counts with the McMaster Method. Equipped with specialized advanced features, this microscope provides exceptional functionality and precision. Here are the key features that set it apart:
Large 3-D Double-Layer Mechanical Stage: The microscope is equipped with a spacious 3-D double-layer mechanical stage, allowing for smooth and precise specimen movement. This ensures ease of use and accuracy during FEC testing.
Coaxial Coarse & Fine Focusing System: The coaxial coarse and fine focusing system enables fine-tuned adjustments, allowing you to achieve sharp and clear images. This feature is essential for detailed examination and accurate counting.
Brightness-Adjustable LED Illumination: The microscope features an LED illumination system with adjustable brightness levels. This ensures optimal lighting conditions for enhanced visibility and improved sample analysis.
Multiple Levels of Magnification: With magnification levels of 4X, 10X, and 20X (40X, 100X, 200X with optional objectives), this microscope provides versatile options for various examination needs. You can easily switch between magnifications to observe different aspects of the samples.
Perfect for Various Settings: Whether you are operating a clinic, veterinary practice, school laboratory, or conducting FECs in any other professional setting, this microscope is an ideal instrument. Its reliable performance and user-friendly design make it suitable for a wide range of applications.
Experience Precise and Reliable FEC Testing
Our advanced biological compound microscope is the perfect tool for conducting Fecal Egg Counts with accuracy and efficiency. Its specialized features and robust construction ensure reliable performance in any professional setting. Invest in this superior instrument to elevate your FEC testing and achieve precise results.
ORDERS SHIP SAME DAY
EMAIL AND QUESTIONS ANSWERED PROMPTLY.
ASK US ABOUT OUR WHOLESALE OPTIONS FOR YOUR LAB, BUSINESS OR SCHOOL.
Click on image to zoom.
Description
This is an advanced biological compound microscope that is specially designed for conducting Fecal Egg Counts with McMasters Method. It comes with specialized advanced features: large 3-D double layer mechanical stage, coaxial coarse & fine focusing system, and brightness-adjustable LED illumination. The levels of magnification are 4X,10X, 20X (40X, 100X, 200X). It is a perfect instrument for clinics, vets, schools or anyone conducting FEC’s. Excellent One (1) Year Factory Warranty
Features :
Fully Coated Optical System with High Resolution Showing Sharp Image, 45-degree Inclined 360-degree Swiveling Sliding Binocular Head, Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish, Low Position Coaxial Stage Movement Control, Coaxial Coarse Fine Focusing with CA Knob Tension Control, Fully Coated Optical System with High Resolution, High Quality Professional Grade Microscope with Crystal Clear Sharp Images, Perfect for Clinics, Vets, Doctors and Medical School Students, Magnification Settings: 4X,10X, 20X (40X, 100X, 200X), Upward Stage Stopper to Protect Slides and Objectives, Condenser with Iris Diaphragm, Rack and Pinion Control for Condenser, Built-in LED Illumination System with Variable Intensity, Dual Side Focusing Controls, Three Plan Achromatic Objectives, 10x /18mm Set of Eyepieces, Full Optical Glass Elements, Precise Ground Glass Lenses, All Metal Mechanical Components, Adjustable Interpupillary Distance, Adjustable Diopter on Ocular, Rugged Metal Frame and Stand with Stain Resistant Enamel Finish, Spare Bulb Included
Specifications :
Nosepiece: quadruple
Mechanical Tube Length: 6-5/16″ (160mm)
Head: binocular sliding head inclined at 45-degree
Wide-Field Eyepiece: WF10X 18mm
Interpupillary Distance: 2-3/16″ – 3-0″ (55 – 75mm)
Achromatic Plan Objectives: 4X,10X, 20X (40X, 100X, 200X)
Stage Dimensions: 5-1/2″x 5-1/2″ (140x140mm)
Stage Traveling Range: 2-15/16″x 1-3/4″ (75x45mm)
Focusing Range: 1-3/16″ (30mm)
Division of Fine Focusing: 0.0000787″ (0.002mm)
Abbe Condenser: NA=1.25 with rack and pinion focusing control
Power cord (US and Canada standard)
Microscope Dimensions: 12″ x 9″ x 16″
Packing List:
One Sliding Binocular Microscope Head
One Microscope Body with Frame, Base and LED Illumination System
Four High Quality Achromatic Plan Objectives, 4X,10X, 20X (40X, 100X, 200X)
Two 10X Wide-field Eyepieces
One Spare LED Circuit Board
Dust Cover
Operation Manual and Components Guide
Shipping Weight: 13 lbs
